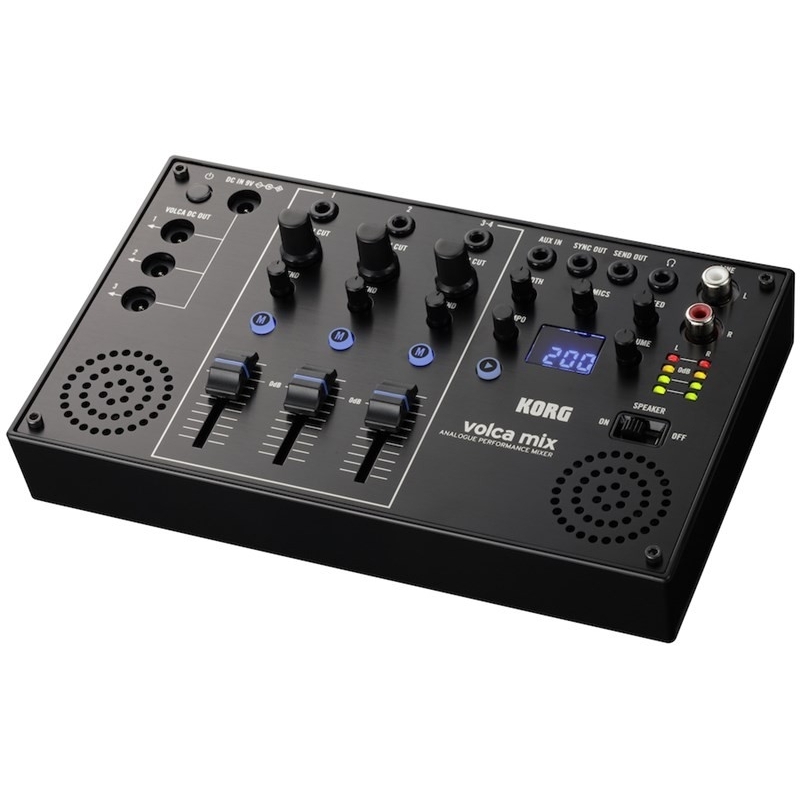

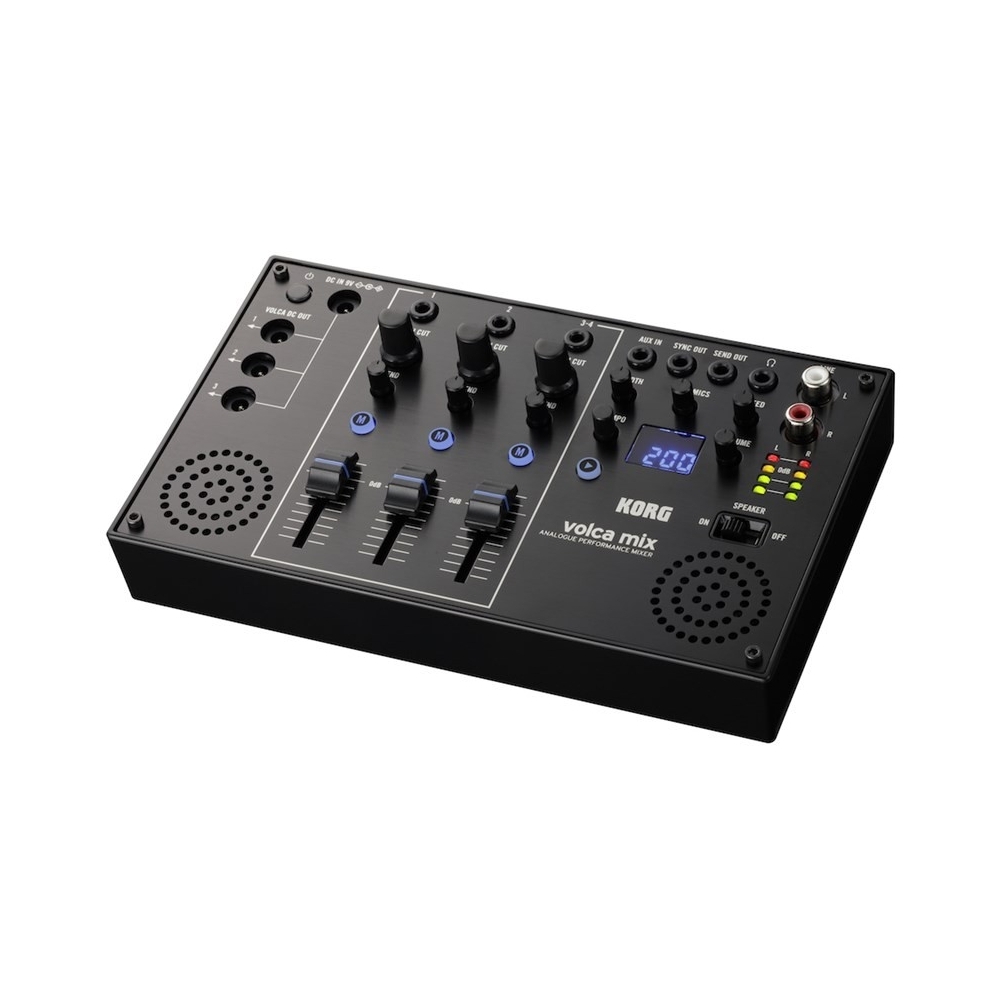

Korg Volca Mix

The volca mix is a four-channel analog mixer with an intuitive interface and plenty of connectivity. It provides two mono inputs and one stereo input, perfect for connecting three volca units. The jacks are mini-jacks, allowing you to make connections with just one stereo mini-cable from the headphone out of each volca unit. The channel volumes use vertical faders that allow precise control. The gain can be boosted to adjust the mix balance, and mute buttons are also provided. Each channel is also equipped with a LO/HI CUT filter that lets you control the low and high frequency ranges with a single knob. The pristine, natural-sounding filters that you expect from analog gear give you complete control over the character of your sound.

Features:

Mixer

Mixer Type:

Four channel analogue mixer

Number of Channels:

Two monaural*1, one stereo*2 *1: Monaural output volca: volca keys, volca bass, volca beats, volca kick *2: Stereo output volca: volca sample, volca fm

Channel Controls:

Lo/Hi Cut, Send Level, Mute, Volume (Available to boost +6 dB gain)

Bus:

Four channels analogue mix bus, monaural mix send bus, stereo AUX In/Return bus

Master:

Volume

Master Effects

Analog Stereo Width Expander (Width), Analog Dynamic Range Compressor (Dynamics, Speed)

Sync Controls

Play, Tempo

Input/Output

Mixer Input:

Mixer In x 3 (1/8" [3.5 mm] stereo mini jack, 0dBu)

AUX

AUX In (1/8" [3.5 mm] stereo mini jack, 0dBu)

Send:

Send Out (1/8" [3.5 mm] stereo mini jack, 0dBu)

Sync:

Sync Out (1/8" [3.5 mm] stereo mini jack, Output Level: 5 V)Audio Output:

Audio Output:

LINE OUT (L/R, RCA pin jack, Max 11.1 dBu) Headphone (1/8" [3.5 mm] stereo mini jack)

Speaker:

Built-in stereo speakers, On/Off

Power

Power：

AC adapter (DC 9 V)

Current Consumption:

300 mA

Output Power:

VOLCA DC OUT x 3 (Connect with including DC-DC cable, up to 800 mA in total, 9 V)

Others

Dimensions (W x D x H):

193 mm x 115 mm x 45 mm/7.60" x 4.53" x 1.77" (including knobs)

Weight:

350g/12.35 oz.

Included Items:

AC adapter, DC-DC cable x 3, Audio cable x 3

Accessories (sold separately):

SEQUENZ CB-4VOLCA semi hard case (Can store up to three volcas and volca mix), SQ-CABLE-6 sync cables.
